SS 904L Fasteners for Acidic, Offshore and High Corrosion Industrial Applications
Aurum Overseas is a trusted SS 904L fasteners suppliers & exporters serving industrial projects across Europe, USA, UAE, Saudi Arabia, Qatar, Oman, and other global engineering markets requiring superior corrosion resistance in aggressive chemical and chloride-rich environments. SS 904L fasteners are widely used in sulfuric acid processing systems, offshore platforms, seawater cooling systems, petrochemical plants, and refinery infrastructure where conventional stainless steels often experience rapid corrosion failure.
SS 904L is a high-alloy austenitic stainless steel containing elevated nickel, molybdenum, and copper content designed specifically for highly corrosive industrial environments. The copper addition significantly improves sulfuric acid resistance, while higher nickel and molybdenum levels enhance pitting resistance and structural stability in chloride exposure conditions. These characteristics make SS 904L fasteners highly suitable for fertilizer plants, marine systems, chemical processing units, offshore engineering, and acidic process applications requiring long operational life with reduced maintenance risk.
Industrial procurement teams across North America, Europe, and Gulf countries prefer SS 904L fasteners for critical bolting systems where corrosion reliability, export compliance, material traceability, and long-term operational performance are essential.
SS 904L Fasteners Specifications, Standards and Export Supply Range
SS 904L fasteners supplied by Aurum Overseas are manufactured according to international ASTM, ASME, EN, DIN, and ISO standards for offshore, refinery, marine, and chemical processing applications requiring corrosion-resistant fastening systems.
| Specification | Details |
|---|---|
| Material Grade | Stainless Steel 904L |
| UNS Number | UNS N08904 |
| Werkstoff Number | 1.4539 |
| EN Grade | EN 1.4539 |
| ASTM Standards | ASTM A193, ASTM A182, ASTM A276, ASTM A479 |
| ASME Standards | ASME SA193, SA182, SA479 |
| ISO Standards | ISO 4014, ISO 4017, ISO 4032 |
| DIN Standards | DIN 931, DIN 933, DIN 912, DIN 934 |
| Thread Types | Metric, UNC, UNF, BSW |
| Diameter Range | M3 to M56 |
| Imperial Sizes | 3/8" to 2"+" |
| Length Range | 3 mm to 200 mm+ |
| Surface Finish | Pickled, Passivated, PTFE Coated |
| Certifications | EN 10204 3.1 / 3.2 |
| Supply Capability | Export Worldwide |
SS 904L Fasteners Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| UNS | N08904 |
| EN | 1.4539 |
| DIN | 1.4539 |
| JIS | SUS 904L |
| AFNOR | Z2 NCDU 25-20 |

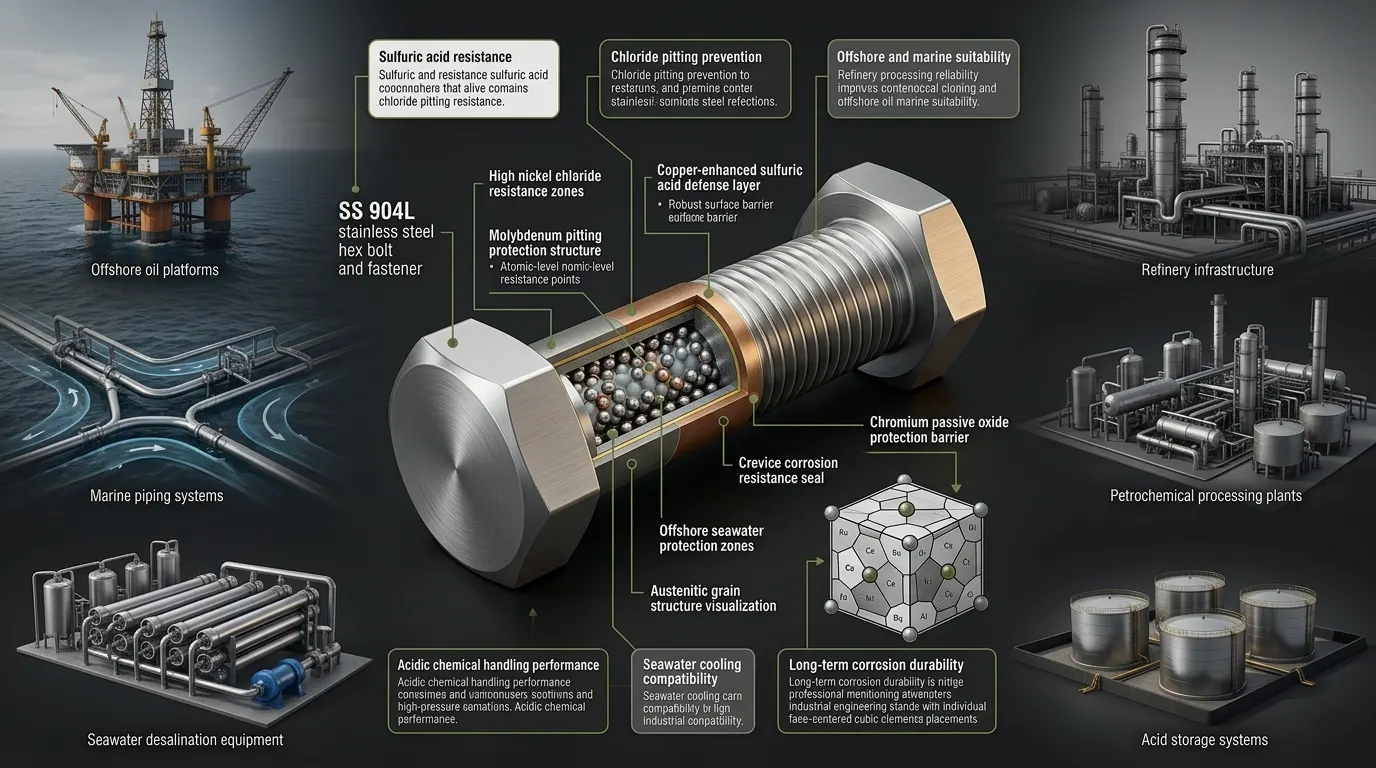

Chemical Composition of SS 904L Fasteners
The superior corrosion resistance of SS 904L fasteners is achieved through its high nickel and molybdenum composition combined with controlled copper content. Unlike conventional stainless steels, SS 904L is specifically engineered for acidic and chloride-intensive industrial environments where pitting, crevice corrosion, and stress corrosion cracking are major operational concerns.
The copper addition is particularly important in sulfuric acid systems because it improves resistance in reducing acid environments where grades such as 316L may fail prematurely. Higher molybdenum content improves localized corrosion resistance, while nickel stabilizes the austenitic structure under chloride exposure conditions.
| Element | Composition (%) | Functional Benefit |
|---|---|---|
| Chromium (Cr) | 19.0 – 23.0 | Oxidation and corrosion resistance |
| Nickel (Ni) | 23.0 – 28.0 | Chloride stability |
| Molybdenum (Mo) | 4.0 – 5.0 | Pitting resistance |
| Copper (Cu) | 1.0 – 2.0 | Sulfuric acid resistance |
| Carbon (C) | Max 0.020 | Improved weldability |
| Nitrogen (N) | Max 0.10 | Structural stability |
| Iron (Fe) | Balance | Mechanical support |
| Corrosion Environment | SS 904L Performance |
|---|---|
| Sulfuric Acid | Excellent |
| Phosphoric Acid | Excellent |
| Chloride Pitting | Very High |
| Crevice Corrosion | Excellent |
| Seawater Exposure | Very Good |
| Stress Corrosion Cracking | Improved vs 316L |
Mechanical and Physical Properties of SS 904L Fasteners
SS 904L fasteners provide reliable mechanical performance in high-corrosion industrial applications requiring stable structural integrity under thermal and chemical exposure conditions.
| Property | Value |
|---|---|
| Tensile Strength | 490 MPa Min |
| Yield Strength | 220 MPa Min |
| Elongation | 35% Min |
| Hardness | Max 90 HRB |
| Modulus of Elasticity | 190 GPa |
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Range | 1300 – 1390°C |
| Thermal Conductivity | 11.5 W/m·K |
| Thermal Expansion | 15 × 10⁻⁶ /°C |
| Electrical Resistivity | 952 nΩ·m |

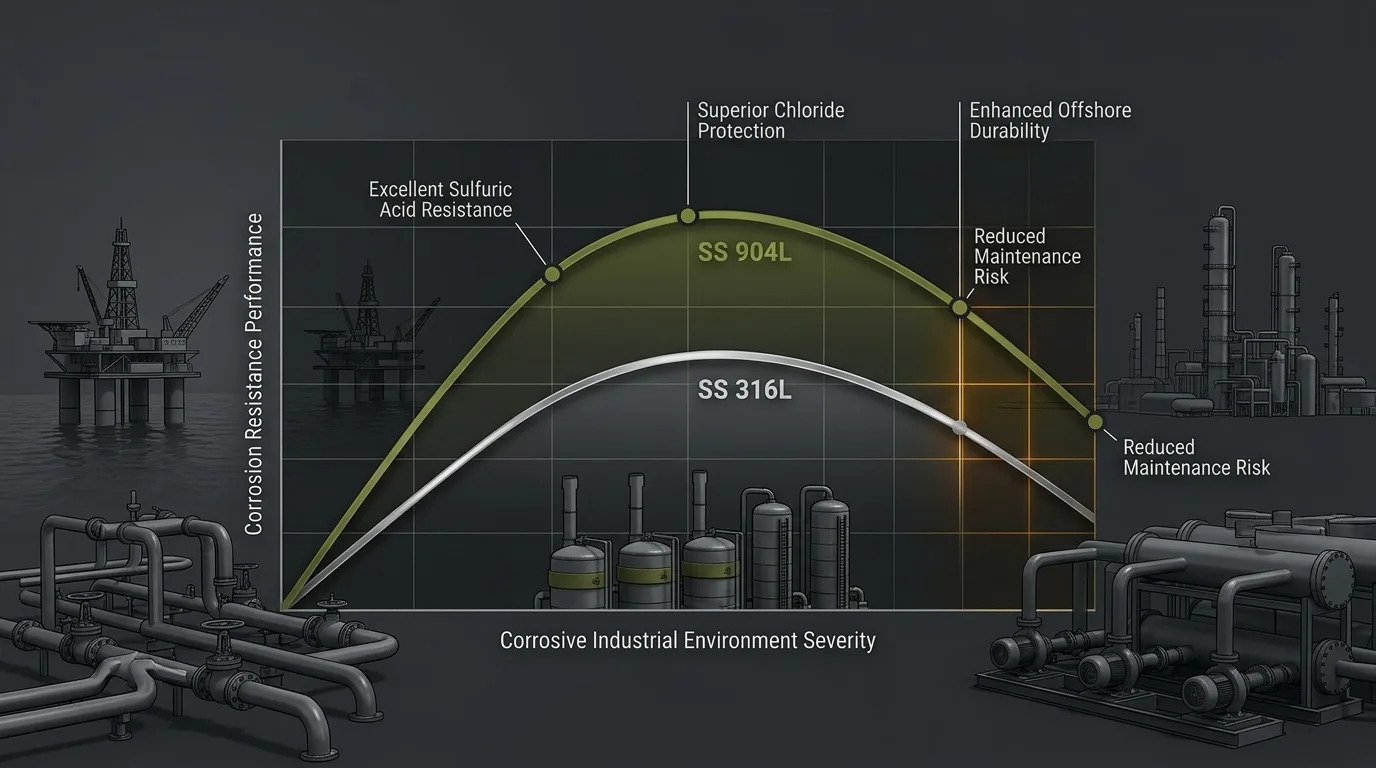

Corrosion Resistance Performance of SS 904L in Sulfuric Acid and Chloride Environments
SS 904L fasteners are extensively used in acidic process systems where conventional stainless steels experience rapid pitting, crevice corrosion, or stress corrosion cracking failures. The alloy demonstrates exceptional resistance in sulfuric acid processing, phosphoric acid systems, fertilizer plants, flue gas desulfurization systems, and chloride-contaminated process equipment.
In marine and offshore environments, SS 904L fasteners provide reliable performance against chloride attack and seawater exposure while maintaining excellent fabrication characteristics. Compared to standard austenitic grades, SS 904L offers significantly better corrosion resistance in warm chloride and acidic environments where process reliability and reduced maintenance are critical operational requirements.
| Property | SS 904L | SS 316L |
|---|---|---|
| Sulfuric Acid Resistance | Excellent | Moderate |
| Chloride Pitting Resistance | Very High | Moderate |
| Crevice Corrosion Resistance | Excellent | Moderate |
| Seawater Performance | Very Good | Fair |
| Acidic Process Suitability | Excellent | Limited |
SS 904L vs SS 316L Fasteners for Corrosion and Acid Processing Applications
Industrial buyers frequently compare SS 904L and SS 316L fasteners when selecting corrosion-resistant bolting systems for offshore, marine, refinery, and acidic processing environments. While SS 316L performs effectively in moderate chloride conditions, SS 904L provides substantially improved resistance in sulfuric acid, phosphoric acid, and aggressive chloride exposure environments.
SS 904L fasteners are typically selected for higher corrosion severity levels where operational downtime, maintenance costs, and premature fastener failures create significant industrial risks.
| Property | SS 904L | SS 316L |
|---|---|---|
| Nickel Content | Higher | Lower |
| Copper Content | Present | Minimal |
| Sulfuric Acid Resistance | Excellent | Moderate |
| Chloride Resistance | Very High | Moderate |
| Pitting Resistance | Superior | Standard |
| Cost | Higher | Lower |
| Typical Industries | Chemical, Offshore | General Marine |
For applications requiring moderate chloride corrosion resistance and standard marine service conditions, buyers can also explore SS 316L Fasteners suppliers & exporters used in industrial piping systems, offshore support structures, and commercial engineering assemblies.
Types of SS 904L Fasteners Available for Industrial Export Projects
SS 904L fasteners are supplied in multiple configurations for pressure equipment, offshore structures, chemical plants, marine assemblies, and refinery piping systems requiring superior corrosion resistance and export-grade quality assurance.
| Fastener Type | Industrial Application |
|---|---|
| Hex Bolts | Pressure systems and offshore assemblies |
| Heavy Hex Bolts | Refinery and petrochemical equipment |
| Stud Bolts | Flange connections |
| Socket Head Cap Screws | Precision industrial machinery |
| Anchor Bolts | Structural installations |
| Threaded Rods | Industrial support systems |
| U-Bolts | Marine and piping applications |
| Hex Nuts | Heavy engineering assemblies |
| Lock Nuts | High-vibration systems |
| Flat Washers | Load distribution |
| Spring Washers | Dynamic loading applications |
| Parameter | Range |
|---|---|
| Metric Sizes | M3 to M56 |
| Imperial Sizes | 3/8" to 2"+" |
| Thread Types | UNC, UNF, Metric, BSW |
| Rod Length | Up to 5 meters |
| Manufacturing | Rolled and Cut Threads |
SS 904L Fasteners Suppliers in Europe for Chemical and Offshore Engineering Industries
Aurum Overseas supplies SS 904L fasteners to Europe supporting chemical processing plants, offshore engineering projects, marine systems, fertilizer industries, and environmental process infrastructure requiring EN-compliant corrosion-resistant fastening systems.
European EPC contractors and industrial buyers across Germany, Netherlands, Norway, France, Italy, and the United Kingdom prefer SS 904L fasteners for applications exposed to aggressive acidic chemicals, offshore chloride environments, and long-duration industrial service conditions. Compliance with PED 2014/68/EU requirements and EN 1.4539 material standards is critical for pressure equipment and offshore engineering projects throughout European markets.
The higher corrosion resistance and longer operational lifecycle of SS 904L fasteners also support sustainability-focused industrial projects where maintenance reduction and asset longevity are major engineering priorities.
SS 904L Fasteners Exporters in USA for Refinery and Chemical Processing Systems
Aurum Overseas exports SS 904L fasteners to USA for refinery systems, offshore processing platforms, chemical manufacturing facilities, and pressure equipment applications requiring ASTM and ASME compliant corrosion-resistant fastening systems.
Industrial procurement teams across Houston, Texas, Louisiana, California, and New York use SS 904L fasteners in sulfuric acid systems, refinery processing equipment, flue gas desulfurization systems, and offshore infrastructure operating under aggressive chemical exposure conditions.
The alloy's resistance to acidic process media combined with reliable fabrication and export documentation support makes SS 904L fasteners suitable for high-specification industrial projects throughout North American markets.
SS 904L Fasteners Suppliers in Gulf Countries for Desalination and Petrochemical Projects
Aurum Overseas supplies SS 904L fasteners across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain supporting desalination plants, refinery systems, petrochemical infrastructure, offshore platforms, and seawater cooling systems exposed to severe chloride and high-temperature operating conditions.
Gulf industrial projects frequently require corrosion-resistant fastening systems capable of operating in warm seawater, aggressive chemical processing environments, and refinery shutdown conditions where long-term material reliability is essential. SS 904L fasteners are widely used in desalination systems, marine infrastructure, petrochemical processing plants, and offshore equipment requiring dependable corrosion performance with export-compliant documentation.
Fast international logistics support, industrial packaging standards, and project-oriented export handling enable reliable supply to major GCC engineering and petrochemical projects.
Testing, Inspection and EN 10204 Certification for SS 904L Fasteners
SS 904L fasteners undergo strict inspection and quality control procedures to ensure compliance with international refinery, offshore, marine, and chemical processing specifications.
| Inspection Type | Purpose |
|---|---|
| PMI Testing | Material grade verification |
| Tensile Testing | Mechanical validation |
| Hardness Testing | Surface hardness control |
| IGC Testing | Intergranular corrosion resistance |
| Dimensional Inspection | Precision verification |
| Third-Party Inspection | Export project approval |
| Certification | Availability |
|---|---|
| EN 10204 3.1 | Available |
| EN 10204 3.2 | Available |
| Mill Test Certificates | Available |
| Heat Number Traceability | Available |
| Export Documentation | Available |
Export Packaging, Documentation and Global Logistics Support
SS 904L fasteners are packed using export-grade packaging materials designed to prevent contamination, corrosion, and transit damage during international shipment. Packaging options include sealed cartons, moisture-resistant wrapping, fumigated wooden crates, and customized industrial packaging for EPC and offshore projects.
Aurum Overseas supports international shipments using FOB, CIF, and other commercial export arrangements supported by complete export documentation, material traceability reports, packing lists, inspection records, and Mill Test Certificates required for refinery, offshore, and petrochemical procurement workflows.
Why Industrial Buyers Choose Aurum Overseas for SS 904L Fasteners
Aurum Overseas supports industrial buyers across Europe, USA, and Gulf countries with corrosion-resistant SS 904L fasteners engineered for offshore, marine, refinery, and acidic processing applications.
Our expertise in international export logistics, industrial metallurgy, inspection documentation, and corrosion-resistant fastening systems enables reliable supply for EPC contractors, offshore engineering companies, refinery operators, and chemical processing industries requiring certified industrial fastening solutions with global shipping support.
FAQs – SS 904L Fasteners Suppliers & Exporters
1. Why are SS 904L fasteners used in sulfuric acid applications?
SS 904L fasteners contain copper, molybdenum, and high nickel content which significantly improve
resistance to sulfuric acid and aggressive acidic process environments compared to standard
stainless steels.
2. Are SS 904L fasteners suitable for offshore and seawater systems?
Yes, SS 904L fasteners provide excellent resistance to chloride pitting and crevice corrosion,
making them suitable for offshore platforms, marine equipment, and seawater cooling systems.
3. What standards are available for SS 904L fasteners?
SS 904L fasteners are supplied according to ASTM, ASME, EN, DIN, and ISO standards including ASTM
A193, ASTM A182, EN 1.4539, and related industrial specifications.
4. Do you export SS 904L fasteners to Europe, USA and Gulf countries?
Yes, Aurum Overseas exports SS 904L fasteners globally including Germany, Netherlands, Norway, USA,
UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
5. What certifications are supplied with SS 904L fasteners?
SS 904L fasteners are supplied with EN 10204 3.1 / 3.2 certification, Mill Test Certificates, PMI
reports, and export documentation support for industrial project requirements.
Request a Quote for SS 904L Fasteners
Looking for reliable SS 904L fasteners suppliers & exporters in Europe, USA, UAE, Saudi Arabia, Qatar, Oman, or other international industrial markets? Aurum Overseas supplies certified SS 904L fasteners for offshore, chemical processing, refinery, marine, and acidic industrial applications with global export support, custom manufacturing capability, and international logistics assistance.
For general engineering, structural, and industrial applications, you can also explore our wide range of SS 304 Fasteners Suppliers solutions designed for excellent corrosion resistance and cost-effective performance across multiple industries.
Contact our team today for pricing, technical specifications, export documentation support, and project RFQ requirements.
Request a Quote
