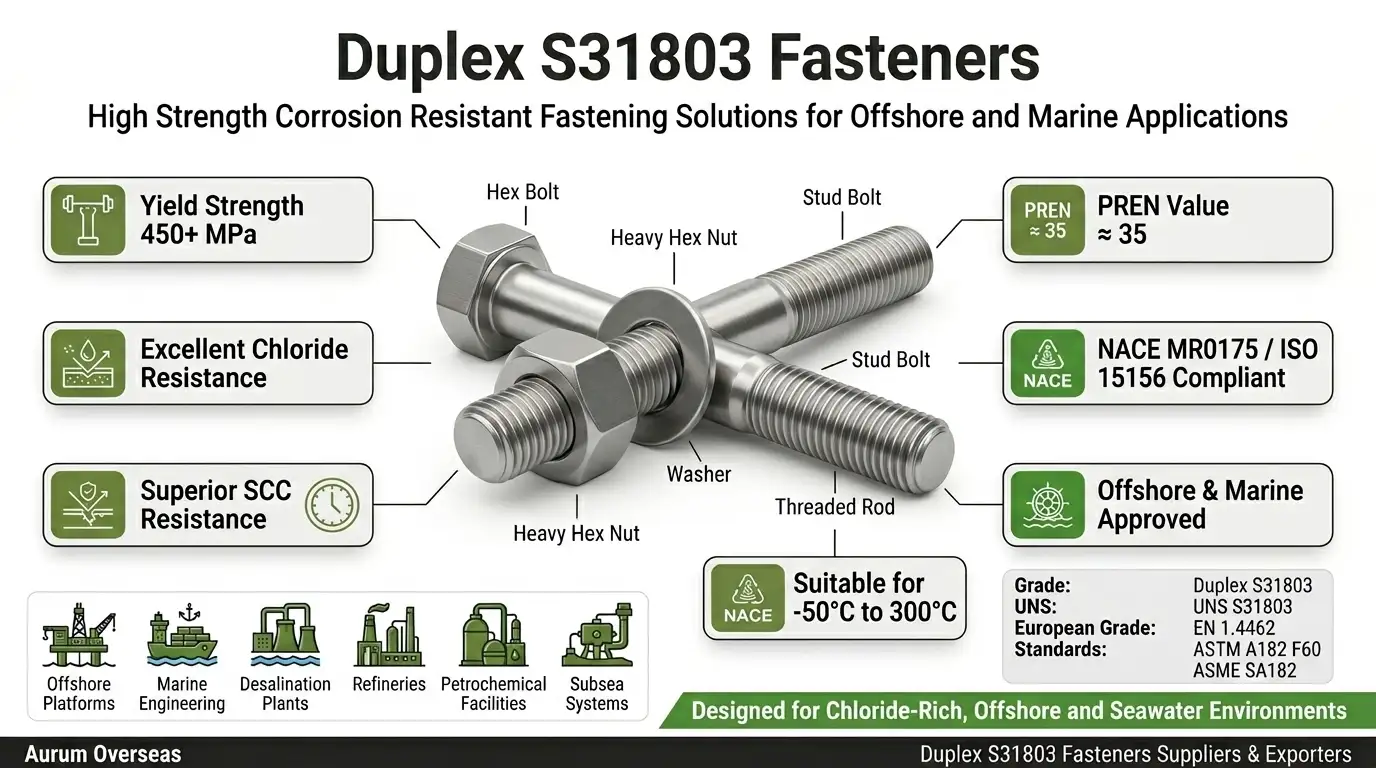

Duplex S31803 Fasteners for Offshore and High Chloride Industrial Environments
Aurum Overseas is a trusted Duplex S31803 fasteners suppliers & exporters offering corrosion-resistant fastening solutions for offshore oil & gas platforms, marine engineering, desalination plants, chemical processing systems, and chloride-intensive industrial environments. Duplex S31803 fasteners combine high mechanical strength with excellent resistance to pitting corrosion, crevice corrosion, and stress corrosion cracking in aggressive seawater and industrial process conditions.
The duplex ferritic-austenitic microstructure of UNS S31803 provides significantly higher strength compared to conventional stainless steel grades such as 316L while maintaining reliable corrosion resistance in offshore and petrochemical applications. These fasteners are widely used in pressure systems, subsea assemblies, marine structures, refinery piping systems, and high-performance industrial equipment requiring long operational life under demanding environmental conditions.
Industrial buyers across USA, Europe, UAE, Saudi Arabia, Qatar, and Oman prefer Duplex S31803 fasteners for applications where chloride resistance, structural reliability, and cost-effective duplex performance are essential.
Duplex S31803 Fasteners Specifications
| Specification | Details |
|---|---|
| Material Grade | Duplex S31803 |
| UNS Number | UNS S31803 |
| European Grade | EN 1.4462 |
| ASTM Standards | ASTM A182 F60, ASTM A276, ASTM A479 |
| ASME Standards | ASME SA182, SA479 |
| NACE Compliance | NACE MR0175 / ISO 15156 |
| Thread Standards | Metric, UNC, UNF, BSW |
| Size Range | M3 to M56 |
| Length Range | 3 mm to 200 mm+ |
| Forms Available | Bolts, Nuts, Washers, Stud Bolts, Threaded Rods |
| Surface Finish | Pickled, Passivated, PTFE Coated |
| Inspection | PMI, Hardness, Tensile, Corrosion Testing |
| Certification | EN 10204 3.1 / 3.2 |

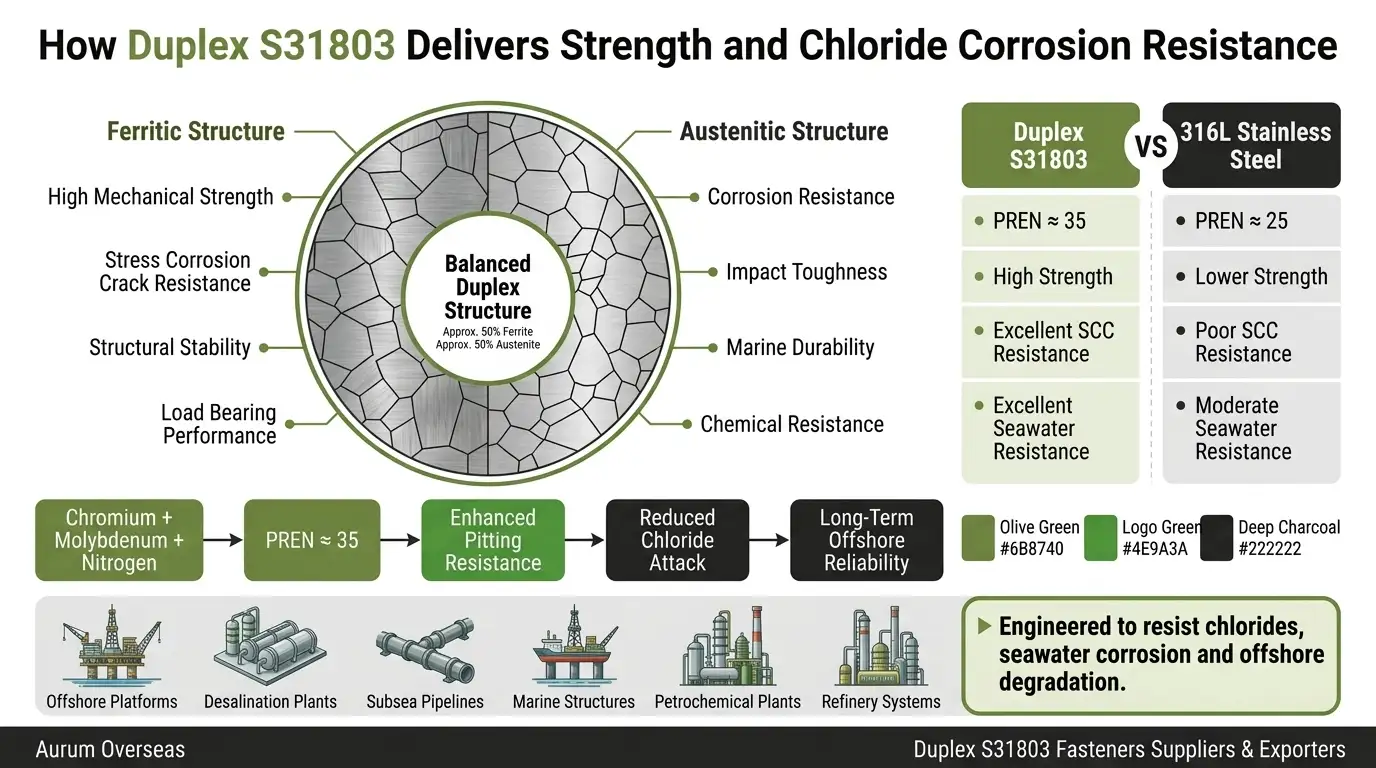

Duplex Ferritic-Austenitic Metallurgy and Mechanical Properties of S31803 Fasteners
Duplex S31803 fasteners are manufactured using a balanced duplex microstructure that combines the strength advantages of ferritic stainless steel with the corrosion resistance of austenitic stainless steel. This dual-phase structure improves mechanical performance and chloride corrosion resistance compared to conventional austenitic stainless steel fasteners.
The higher chromium, molybdenum, and nitrogen content improves resistance against seawater corrosion, chloride pitting, and industrial chemical attack, making Duplex S31803 fasteners suitable for offshore processing systems and marine engineering infrastructure.
Chemical Composition of Duplex S31803 Fasteners
| Element | Composition (%) | Industrial Benefit |
|---|---|---|
| Chromium | 22.0 – 23.0 | Improves pitting resistance |
| Nickel | 4.5 – 6.5 | Enhances structural balance |
| Molybdenum | 3.0 – 3.5 | Better crevice corrosion resistance |
| Nitrogen | 0.14 – 0.20 | Higher mechanical strength |
| Carbon | Max 0.030 | Improved weldability |
| Iron | Balance | Structural integrity |
PREN (Pitting Resistance Equivalent Number) of Duplex S31803 is approximately 35, providing excellent resistance in chloride-rich offshore and seawater environments.
Mechanical Properties of Duplex S31803 Fasteners
| Property | Value | Industrial Benefit |
|---|---|---|
| Tensile Strength | 620 – 800 MPa | High load-bearing performance |
| Yield Strength | 450 MPa Min | Nearly 2x stronger than 316L |
| Elongation | 25% Min | Reliable ductility |
| Hardness | ≤31 HRC / ≤293 HB | Better wear resistance |
| Impact Toughness | High | Suitable for offshore service |
Physical Properties of Duplex S31803 Fasteners
| Property | Value | Industrial Benefit |
|---|---|---|
| Density | ~7.8 g/cm³ | High strength-to-weight ratio |
| Melting Range | 1350 – 1460 °C | Thermal stability |
| Thermal Conductivity | Higher than austenitics | Improved heat transfer |
| Thermal Expansion | Lower than 316L | Better thermal cycling performance |
Resistance to Chlorides, Seawater and Stress Corrosion Cracking
Duplex S31803 fasteners provide excellent resistance to chloride-induced pitting corrosion and stress corrosion cracking in offshore, marine, and desalination applications. Their duplex structure performs effectively in seawater environments where conventional stainless steels often fail due to localized corrosion and cracking.
The alloy is also highly suitable for sour gas environments containing H₂S and CO₂, making it widely used in offshore oil & gas systems, refinery infrastructure, chemical process equipment, and subsea assemblies requiring reliable corrosion-resistant fastening systems.
Duplex S31803 fasteners operate effectively in temperatures ranging from approximately -50 °C to 300 °C while maintaining good structural integrity and corrosion resistance.
Duplex S31803 vs 316L vs Super Duplex 2507
| Property | Duplex S31803 | SS 316L | Super Duplex 2507 |
|---|---|---|---|
| Yield Strength | High (450+ MPa) | Low | Higher |
| PREN Value | ~35 | ~25 | >40 |
| SCC Resistance | Excellent | Poor | Excellent |
| Chloride Resistance | Excellent | Moderate | Superior |
| Relative Cost | Medium | Low | High |
ASTM, ASME, NACE and International Duplex Fastener Standards
Duplex S31803 fasteners supplied by Aurum Overseas comply with major offshore, refinery, marine, and EPC engineering specifications required across USA, Europe, and Gulf industrial projects.
| Standard | Description |
|---|---|
| ASTM A182 F60 | Duplex forged fasteners |
| ASTM A276 | Stainless steel bars |
| ASTM A479 | Pressure-service stainless bars |
| ASME SA182 | Pressure vessel specification |
| DIN 931 / 933 / 912 | Industrial fastener standards |
| ISO 4014 / 4017 / 4032 | Metric fastener standards |
| EN 1.4462 | European duplex designation |
| NACE MR0175 | Sour gas compliance |
| ISO 15156 | Oil & gas materials standard |
Manufacturing Range, Thread Standards and Types of Duplex S31803 Fasteners
Duplex S31803 fasteners are manufactured for offshore structures, desalination systems, refinery piping, pressure vessels, subsea assemblies, and industrial marine equipment requiring high mechanical strength with superior chloride corrosion resistance.
| Fastener Type | Industrial Application |
|---|---|
| Hex Bolts | Offshore structural assemblies |
| Heavy Hex Bolts | High-pressure systems |
| Socket Head Cap Screws | Industrial machinery |
| Stud Bolts | Flange connections |
| Anchor Bolts | Structural installations |
| U-Bolts | Marine piping systems |
| Threaded Rods | Industrial supports |
| Hex Nuts | Pressure equipment assemblies |
| Lock Washers | Vibration-resistant systems |
Size Range and Thread Standards
| Parameter | Range |
|---|---|
| Metric Sizes | M3 to M56 |
| Imperial Sizes | 3/8" to 2"+" |
| Length Range | 3 mm to 200 mm+ |
| Rod Length | Up to 5 meters |
| Thread Types | UNC, UNF, Metric, BSW |
| Thread Manufacturing | Rolled or Cut Threads |
Surface Finishes Available for Duplex S31803 Fasteners
| Finish Type | Industrial Purpose |
|---|---|
| Pickled Finish | Removes oxide contamination |
| Passivated Finish | Improves corrosion resistance |
| PTFE Coated | Reduces galling |
| Machined Finish | Precision assembly applications |
Testing, Inspection and Quality Assurance
Duplex S31803 fasteners undergo strict inspection and testing procedures to ensure compliance with offshore, refinery, petrochemical, and EPC project specifications.
| Inspection Type | Purpose |
|---|---|
| PMI Testing | Material grade verification |
| Tensile Testing | Mechanical validation |
| Hardness Testing | Surface hardness control |
| Corrosion Testing | Chloride resistance validation |
| Ferrite Testing | Duplex phase confirmation |
| Dimensional Inspection | Precision compliance |
All fasteners are supplied with EN 10204 3.1 / 3.2 certification, material traceability, and third-party inspection support.
Applications in Offshore, Marine and Petrochemical Industries
Duplex S31803 fasteners are widely used in offshore oil & gas platforms, subsea piping systems, desalination plants, marine structures, chemical processing systems, and refinery equipment operating under aggressive chloride and seawater exposure conditions.
Their high strength and superior chloride corrosion resistance make them suitable for long-term industrial service in offshore engineering and petrochemical environments where conventional stainless steel fasteners experience corrosion-related failures.
| Region | Key Industries | Typical Applications |
|---|---|---|
| USA | Offshore Oil & Gas | Gulf of Mexico platforms, shale systems |
| Europe | Offshore & Marine | North Sea systems, marine engineering |
| Gulf Countries | Desalination & Petrochemical | Seawater piping, refinery systems |
Duplex S31803 Fasteners Suppliers in USA for Offshore and Chemical Processing Industries
Aurum Overseas supplies Duplex S31803 fasteners in USA supporting offshore drilling systems, shale infrastructure, pressure vessels, refinery systems, and chemical processing plants requiring ASTM and NACE compliant fastening solutions.
Industrial buyers across Houston, Texas, Louisiana, and Gulf Coast offshore regions prefer Duplex S31803 fasteners for chloride-rich and sour service applications requiring dependable corrosion resistance and structural reliability.
Duplex S31803 Fasteners Exporters in Europe for Offshore and Marine Engineering Applications
Aurum Overseas exports Duplex S31803 fasteners to Europe supporting offshore engineering projects across Norway, Germany, Netherlands, France, Italy, and the United Kingdom.
European EPC contractors and marine engineering companies use Duplex S31803 fasteners in offshore platforms, subsea systems, desalination infrastructure, and power generation facilities requiring EN, ISO, and offshore engineering compliance.
Duplex S31803 Fasteners Supply to UAE, Saudi Arabia and Gulf Petrochemical Industries
Aurum Overseas supplies Duplex S31803 fasteners to UAE, Saudi Arabia, Oman, Qatar, Kuwait, and Bahrain supporting desalination plants, refinery infrastructure, petrochemical systems, and offshore platforms exposed to high chloride and high-temperature Gulf environments.
These fasteners are widely preferred for seawater cooling systems, marine piping assemblies, heat exchangers, and industrial process equipment requiring long-term corrosion resistance in Gulf operating conditions.
Export Packaging and Global Logistics Support
Duplex S31803 fasteners are packed using export-grade packaging materials including moisture-resistant wrapping, sealed cartons, and fumigated wooden crates to prevent transit damage and contamination during global shipment.
Complete traceability documentation, heat number marking, and international logistics support ensure reliable supply for EPC contractors, offshore projects, and industrial buyers worldwide.
Why Industrial Buyers Choose Aurum Overseas
Aurum Overseas is a trusted Duplex S31803 fasteners suppliers & exporters partner supporting offshore engineering companies, refinery operators, EPC contractors, marine industries, and industrial buyers across USA, Europe, and Gulf countries.
Our expertise in duplex metallurgy, corrosion-resistant fastening systems, industrial quality assurance, and export logistics enables us to deliver reliable fastening solutions for demanding offshore and chloride-intensive applications.
Duplex Fasteners Grades Comparison for Offshore and Corrosion Applications
Duplex S31803 fasteners are widely used in offshore platforms, marine systems, and refinery applications requiring excellent chloride corrosion resistance with high structural strength. For higher corrosion resistance and restricted chemistry duplex applications, buyers can also explore Duplex 2205 / S32205 Fasteners suppliers & exporters, while the complete Duplex Fasteners suppliers & exporters range supports offshore, petrochemical, desalination, and EPC industries worldwide.
FAQs – Duplex S31803 Fasteners
1. Why are Duplex S31803 fasteners preferred in offshore applications?
Duplex S31803 fasteners provide higher strength and superior chloride corrosion resistance compared
to conventional stainless steels, making them highly suitable for offshore platforms, subsea systems,
and marine environments.
2. Are Duplex S31803 fasteners suitable for sour gas service?
Yes, Duplex S31803 fasteners comply with NACE MR0175 / ISO 15156 requirements and are widely used
in sour gas and H₂S-containing industrial environments.
3. What industries commonly use Duplex S31803 fasteners?
These fasteners are widely used in offshore oil & gas, desalination, petrochemical, chemical
processing, marine engineering, and refinery systems operating in chloride-rich environments.
4. What certifications are supplied with Duplex S31803 fasteners?
Aurum Overseas supplies Duplex S31803 fasteners with EN 10204 3.1 / 3.2 certification, PMI reports,
tensile testing reports, hardness testing, and third-party inspection documentation.
5. Do you export Duplex S31803 fasteners globally?
Yes, we export Duplex S31803 fasteners across USA, Europe, UAE, Saudi Arabia, Oman, Qatar, Kuwait,
and other international industrial markets with complete export packaging and logistics support.
Request a Quote for Duplex S31803 Fasteners
Looking for reliable Duplex S31803 fasteners suppliers & exporters for offshore, marine, petrochemical, or desalination applications? Aurum Overseas offers bulk supply, custom manufacturing, international export support, and certified duplex fastening solutions for industrial and EPC project requirements worldwide. Contact our team today for pricing, technical specifications, and project quotations.
Request a Quote
