Super Duplex S32760 Bolts Supplier & Exporter in Europe, US & Gulf
Super Duplex UNS S32760 bolts are high-performance fastening components engineered for extreme corrosive environments, high mechanical loads, and critical offshore applications where failure is not an option. These bolts are widely used in subsea oil & gas systems, desalination plants, chemical processing units, and marine structural assemblies operating under continuous chloride exposure and elevated stress conditions.
As a dedicated Super Duplex S32760 bolts supplier and exporter, we provide precision-engineered hex bolts and heavy hex bolts manufactured under strict ASTM A1082 compliance, ensuring full traceability, verified mechanical performance, and international export readiness for Europe, the US, and Gulf regions.
Super Duplex S32760 Bolts – High Integrity Fasteners for Extreme Corrosion & Sour Service Applications
Super Duplex S32760 bolts are designed for the most aggressive industrial environments where standard stainless steel and even conventional duplex fasteners fail due to localized corrosion, stress cracking, or mechanical fatigue. The alloy is enhanced with controlled additions of Tungsten (W) and Copper (Cu), which significantly improve resistance against crevice corrosion, acidic media, and sour gas conditions.
This makes S32760 bolts a preferred choice for offshore platforms, chemical reactors, subsea pipeline flanges, and high-pressure seawater systems. The material maintains a balanced ferritic-austenitic structure, providing superior mechanical strength while retaining excellent corrosion resistance in chloride-rich environments.
Engineering Role of S32760 Bolts in High-Pressure Systems
In high-pressure bolted joints, S32760 bolts act as the primary structural load-bearing elements that maintain gasket compression under fluctuating internal pressures. Their high yield strength ensures long-term preload stability, reducing the risk of leakage, joint relaxation, or catastrophic flange separation in offshore and chemical systems.
Why UNS S32760 Outperforms Standard Duplex and 316 Stainless Steel Bolts
Compared to 316 stainless steel, S32760 provides significantly higher mechanical strength and corrosion resistance. Compared to standard duplex grades, it offers enhanced resistance to localized pitting and crevice corrosion due to its tungsten and copper-enriched chemistry, making it suitable for sour and acidic service conditions.
PREN ≥ 40 Corrosion Resistance for Chloride and Seawater Environments
The high PREN value (≥40) ensures exceptional resistance to chloride-induced pitting corrosion, making S32760 bolts highly reliable in seawater immersion, desalination systems, and offshore splash zones where corrosion rates are extremely aggressive.

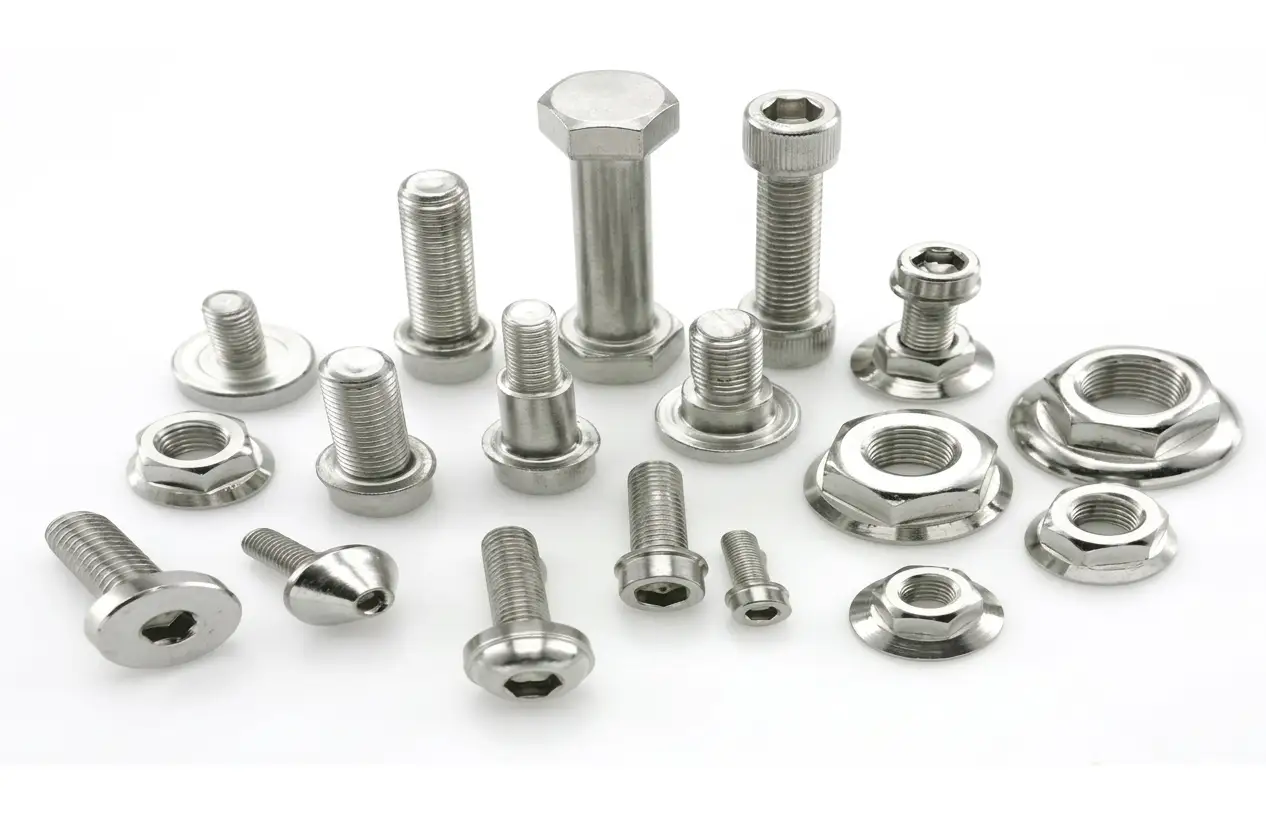

Types of Super Duplex S32760 Bolts We Supply
We supply a full range of industrial bolt types engineered for high-load structural and pressure-retaining applications across global industries.
Hex Head Bolts (DIN 931 / DIN 933 / ASME B18.2.1)
Hex head S32760 bolts are widely used in structural assemblies, pressure vessel connections, and general industrial fastening systems. They are available in both fully threaded and partially threaded configurations to suit varying load conditions.
Heavy Hex Bolts for Structural & Flange Applications
Heavy hex bolts are designed with a larger bearing surface and higher torque capacity, making them ideal for critical flange joints in offshore platforms, petrochemical plants, and high-pressure piping systems.
Fully Threaded & Partially Threaded Bolt Variants
Fully threaded bolts provide maximum grip length for uniform load distribution, while partially threaded bolts are used where shear strength and clamping precision are critical in structural assemblies.
Custom Length & High-Diameter S32760 Bolts
We manufacture custom-engineered bolts for project-specific applications including large-diameter and extra-long fasteners used in heavy infrastructure, pressure vessels, and subsea assemblies.
Chemical Composition of Super Duplex S32760 (UNS 32760)
The superior corrosion resistance and mechanical strength of S32760 bolts is achieved through a carefully controlled alloy system designed for extreme service environments.
| Element | Min % | Max % | Functional Role |
|---|---|---|---|
| Carbon (C) | — | 0.030 | Carbide control for weld integrity |
| Manganese (Mn) | — | 1.00 | Hot working stability |
| Silicon (Si) | — | 1.00 | Oxidation resistance |
| Chromium (Cr) | 24.0 | 26.0 | Primary corrosion resistance |
| Nickel (Ni) | 6.0 | 8.0 | Phase stability |
| Molybdenum (Mo) | 3.0 | 4.0 | Pitting resistance |
| Copper (Cu) | 0.5 | 1.0 | Acid corrosion resistance |
| Tungsten (W) | 0.5 | 1.0 | Crevice corrosion resistance |
| Nitrogen (N) | 0.20 | 0.30 | Strength enhancement |
| Iron (Fe) | Balance | Balance | Structural matrix |
Tungsten and Copper Strengthening Mechanism
Tungsten and copper additions significantly enhance localized corrosion resistance, particularly in acidic and reducing environments, making S32760 superior for sour service and chemical processing applications compared to standard duplex grades.
Mechanical Properties of S32760 Bolts
S32760 bolts are engineered for extreme mechanical loading conditions where structural reliability is critical under dynamic and cyclic stresses.
| Property | Value | Engineering Significance |
|---|---|---|
| Tensile Strength | 750–900 MPa | High structural load capacity |
| Yield Strength | ≥550 MPa | Clamp load stability |
| Elongation | ≥25% | Controlled ductility |
| Hardness | ≤28 HRC | Prevents brittle failure |
| Impact Strength | High | Offshore fatigue resistance |
| Ferrite Balance | 40–60% | Dual-phase stability |
Yield Strength and Structural Load Capacity
High yield strength ensures that bolts maintain preload integrity in high-pressure flange assemblies, even under thermal cycling and vibration conditions.
Hardness Limits for Safe Industrial Deployment
Controlled hardness levels ensure resistance to hydrogen embrittlement and stress corrosion cracking in sour gas and offshore environments.
Physical Properties & Performance Under Extreme Conditions
S32760 bolts maintain structural stability under wide temperature variations and chemically aggressive environments.
Density, Melting Range & Thermal Stability
The alloy maintains stability at elevated operating temperatures, making it suitable for high-temperature process piping and offshore systems subjected to thermal cycling.
Corrosion Resistance in Chloride, Seawater & Sour Gas Environments
S32760 bolts perform exceptionally well in seawater immersion, desalination systems, and sour gas pipelines where conventional stainless steels rapidly degrade.
Dimensional Range & Thread Specifications for S32760 Bolts
S32760 bolts are manufactured to meet global dimensional standards for compatibility with international engineering systems.
| Specification | Details |
|---|---|
| Metric Size Range | M6 to M100+ |
| Imperial Size Range | 1/4" to 4" |
| Thread Standards | Metric, UNC, UNF, BSW |
| Compliance | ASME B18.2.1 & DIN 931 / DIN 933 |
Precision CNC machining ensures tight tolerances and consistent thread performance across all production batches.
Manufacturing Standards & Production Engineering of S32760 Bolts
S32760 bolts are manufactured under strict metallurgical controls to ensure consistent mechanical properties and international compliance standards.
ASTM A1082 – High-Strength Duplex Fastener Standard
ASTM A1082 governs the production of high-strength duplex fasteners, ensuring mechanical integrity, hardness control, and impact toughness validation for critical applications.
Cold Forging vs Hot Forging Process for Bolt Head Integrity
Cold forging is used for high-volume precision bolts, while hot forging is used for large-diameter bolts requiring superior structural performance under extreme loads.
Rolled Threads for Maximum Fatigue Resistance
Rolled threading improves fatigue life by maintaining continuous grain flow, reducing stress concentration points, and enhancing long-term durability in cyclic loading conditions.
S32760 Bolts vs S32750 Bolts (Engineering Comparison)
| Property | S32760 | S32750 |
|---|---|---|
| Corrosion Resistance | Higher (W + Cu enriched) | Standard super duplex |
| Sour Service Performance | Excellent | High |
| Pitting Resistance | Superior | Very High |
| Application Severity | Extreme offshore/acidic | Offshore seawater |
| Cost Efficiency | Premium | Balanced |
S32760 is selected when operating environments involve higher acidity, sour gas exposure, or more aggressive chemical conditions than standard super duplex applications.
Anti-Galling, Coatings & Installation Performance
S32760 bolts are susceptible to galling under dry installation conditions, which is addressed through advanced surface engineering techniques.
| Coating / Treatment | Benefit | Application |
|---|---|---|
| PTFE-based (Xylan) | Reduces friction & prevents thread seizure | Offshore bolting |
| Zinc-Nickel | Enhances corrosion protection | Marine environments |
| Passivation | Improves surface stability | Chemical exposure systems |
Applications of Super Duplex S32760 Bolts
S32760 bolts are widely used in critical infrastructure where material failure is not acceptable under operational stress conditions.
| Industry Sector | Specific Applications | Environmental Conditions |
|---|---|---|
| Offshore Oil & Gas | Subsea pipelines, wellhead systems | Sour gas, high pressure, seawater |
| Desalination Plants | High-pressure seawater intake systems | Extreme chloride, thermal cycling |
| Chemical Processing | Reactors, pressure vessels | Acidic & reducing environments |
| Marine Engineering | Structural fabrication | Continuous seawater immersion |
Regional Supply & Export Capability (Europe, US, Gulf)
Europe Supply & Offshore Applications
In Europe, S32760 bolts are supplied for offshore and industrial applications requiring EN and DIN
compliance, particularly in marine engineering and chemical processing sectors.
US Supply for Oil & Gas and Chemical Industries
In the United States, supply is aligned with ASTM and ASME standards for oil & gas, petrochemical, and
heavy engineering industries, with logistics support through major industrial hubs such as Houston and
New Orleans.
Gulf Supply for Desalination & Petrochemical Projects
In the Gulf region, bulk supply supports desalination plants, petrochemical facilities, and offshore
installations in UAE, Saudi Arabia, Qatar, and Oman with ISPM-15 certified export packaging and
fast-track shipping routes via Jebel Ali and regional ports.
Quality Assurance, Testing & Certification
Every batch of S32760 bolts undergoes strict quality verification including PMI testing, tensile testing, hardness testing, and ferrite phase analysis to ensure full compliance with international standards.
| Test / Certification | Standard | Purpose |
|---|---|---|
| PMI Testing | ASTM Standards | Material grade verification |
| Hardness Testing | ASTM A1082 | Mechanical compliance |
| Tensile Testing | ASTM E8 | Load performance validation |
| Ferrite Analysis | Metallographic Testing | Phase balance control |
| ASTM G48 Corrosion | Corrosion Testing | Pitting resistance validation |
| EN 10204 3.1 | Material Certification | Chemical traceability |
| EN 10204 3.2 | Third-Party Verification | EPC approval support |
EN 10204 3.1 certification provides full traceability to heat number and chemical composition, while 3.2 certification ensures third-party validation for critical engineering projects.
Packaging, Handling & Export Protection System
All S32760 bolts are protected using anti-corrosion wrapping and individual thread protection caps to prevent surface damage during handling and transportation.
They are packed in ISPM-15 certified heat-treated wooden crates designed for long-distance sea freight, ensuring zero thread deformation and full usability upon delivery.
| Region | Major Ports | Export Documentation |
|---|---|---|
| Europe | Rotterdam, Hamburg, Antwerp | EN 10204, Packing List |
| United States | Houston, Newark, New Orleans | ASTM Compliance Docs |
| Gulf Region | Jebel Ali, Dammam, Doha | COO, MTC, Inspection Reports |
Related Super Duplex Fastener Grades
Super Duplex S32750 Bolts are available as a closely related alloy option for standard offshore seawater applications requiring high strength and excellent corrosion resistance under less aggressive conditions.
Request a Quote for Super Duplex S32760 Bolts
We supply high-precision Super Duplex S32760 bolts for offshore, chemical, marine, and high-pressure industrial applications worldwide. Share your specifications, drawings, or project requirements to receive a fast, technically validated quotation with full certification support and global export logistics assistance.
